Product Overview

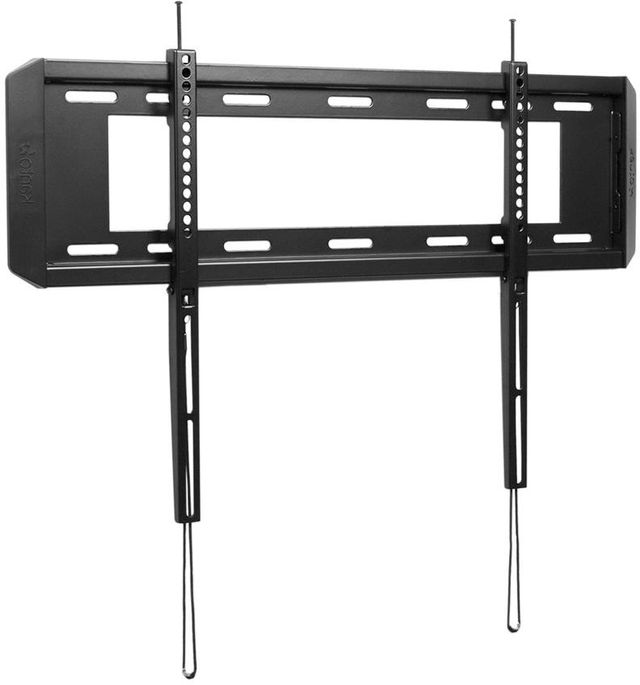

With solid steel construction and a powder-coated finish, this fixed wall mount is built to last. With quick release cables, you can easily access your cables and modify the placement of your TV.

Peace of mind in securing your new TV.

Quick Lock Mechanism

Horizontal Leveling Screws

Strong Wall Plate

The F3760 is designed with two rows of mounting slots for extra strength. Using four lag bolts to support heavier TVs up to 150 pounds, this fixed TV mount provides offset abilities, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 27” wall plate mounts on 16” and 24” stud spacing.

Fits VESA Sizes to 600 x 400

The F3760 is compatible with a range of VESA patterns from 50×50 up to 600×400.

Attractive End Caps

Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.

Shift Your TV Left or Right

Once your mount is installed you can still move the position of your TV left or right. Smoothly slide your TV across the wall plate to get the perfect viewing position. The range of movement depends on your TV size.

Quick Lock Mechanism

The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.

Horizontal Leveling Screws

Located on each of the vertical bracket arms is a leveling screw that is used to fine-tune the angle of your TV. If you notice that your TV is not completely level, use the leveling screws to make the necessary adjustments so that it’s perfectly aligned.
